Transmitter with Display

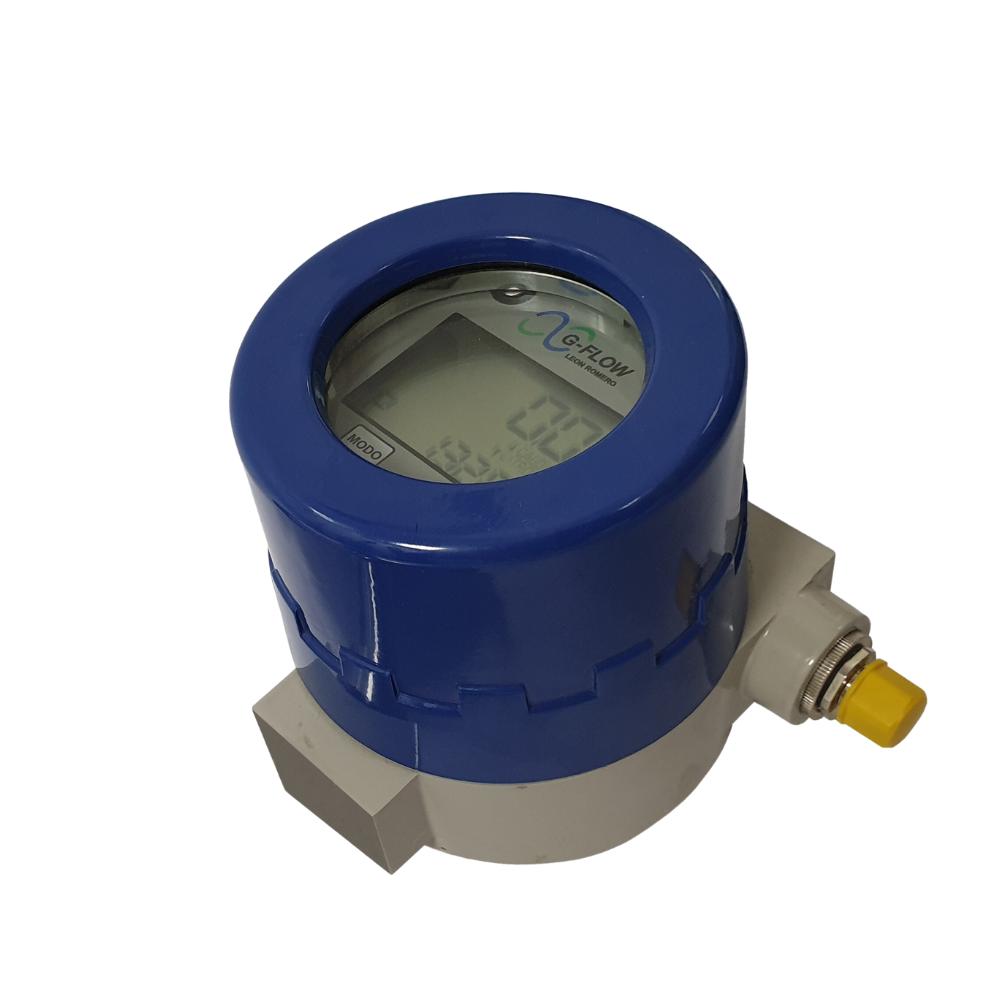

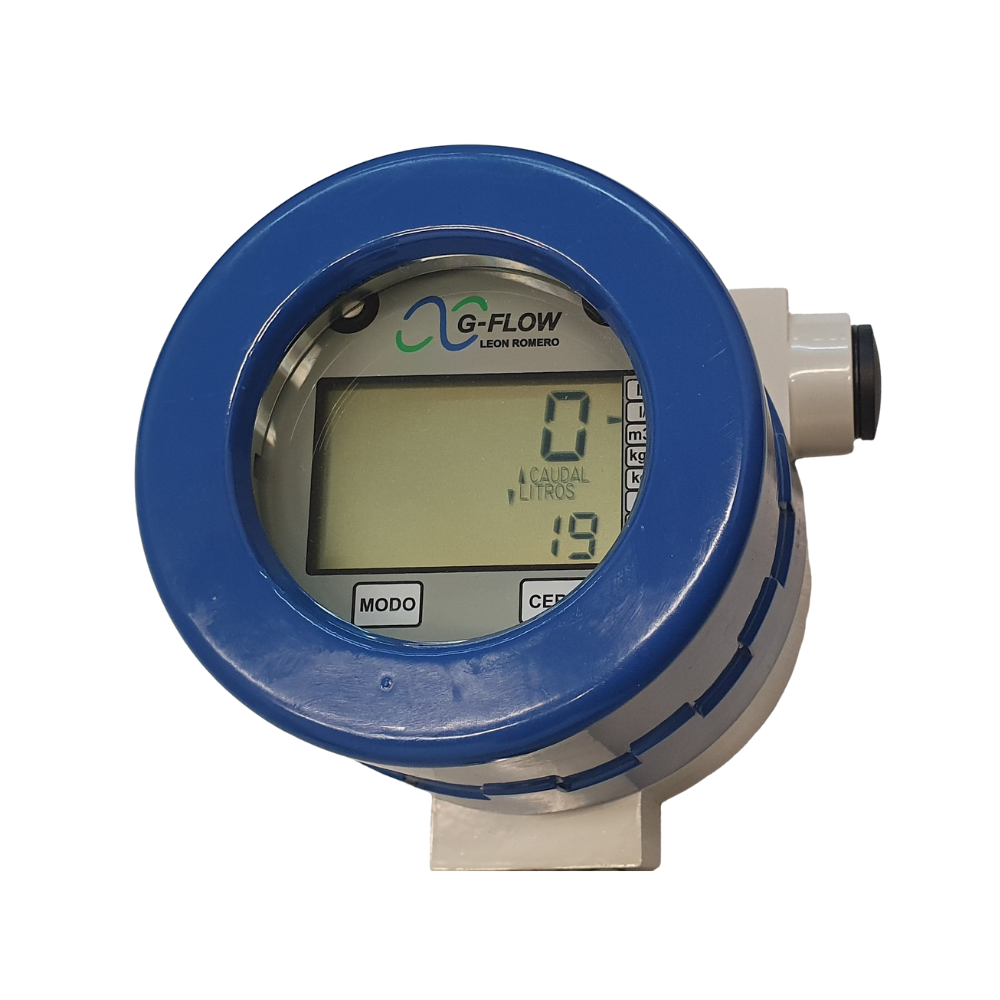

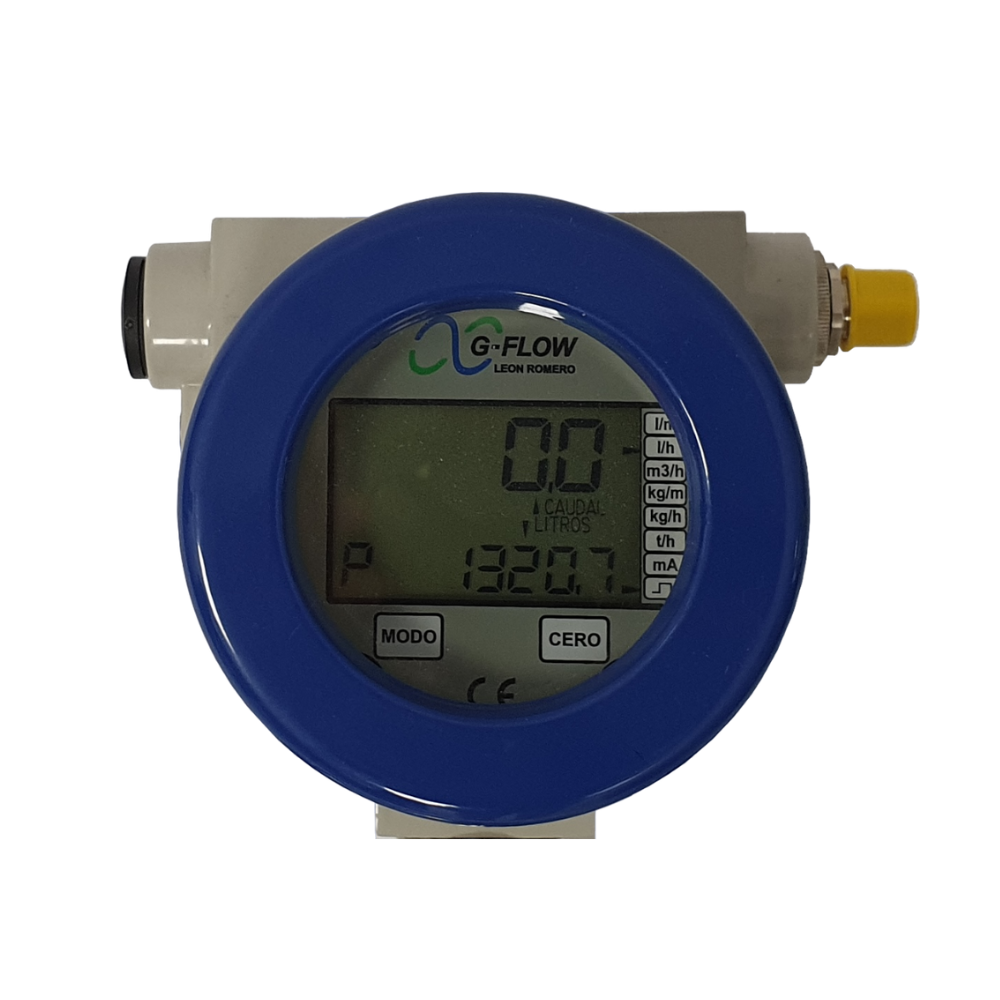

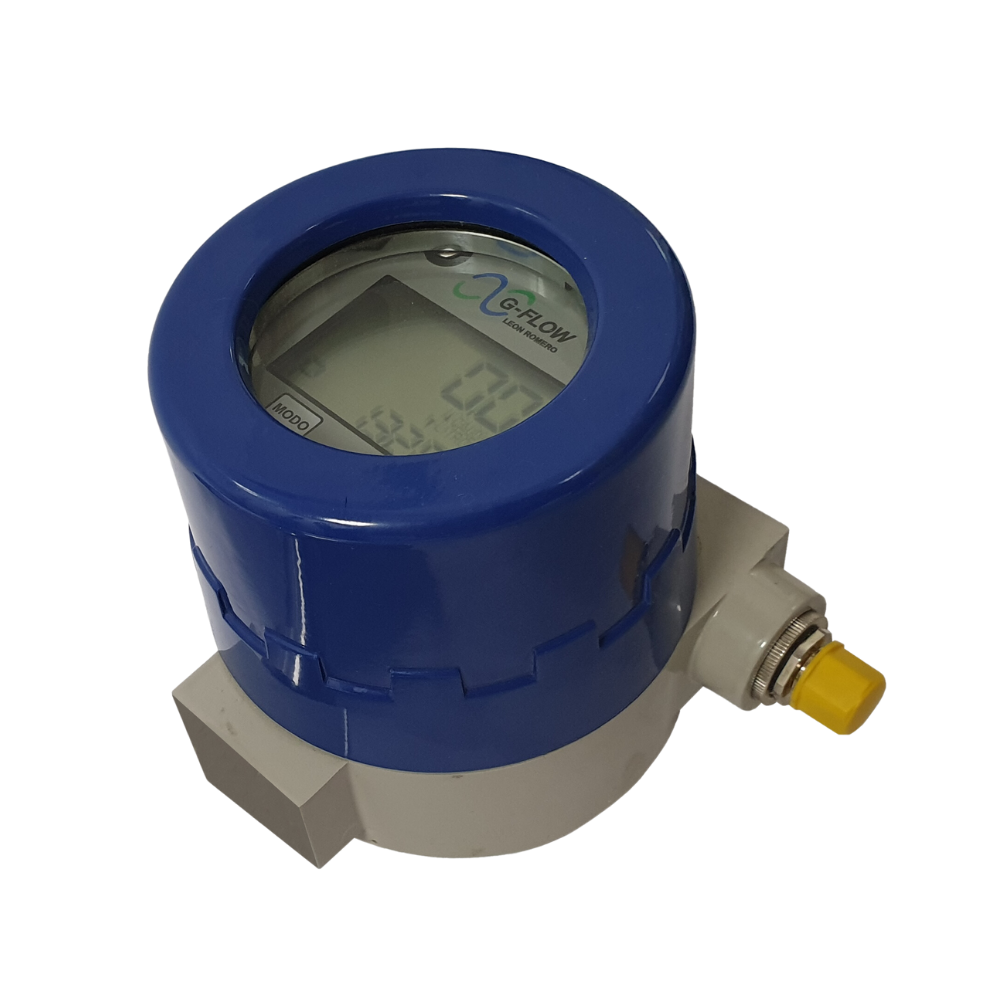

The CEB09 transmitter is an electronic device that locally or remotely visualizes the flow and volume of liquid passing through the Turbine or Oval Wheel flowmeter. This transmitter transforms the received pulses and, using the specific pulses/liter factor of each flowmeter calculates and displays:

• The Total Volume of liters from the start of the equipment's operation, with a resolution of eight digits. It can be zeroed by entering the Configuration Mode (see point 4.2).

• The Partial Volume of liters with easy zeroing.

• The Instantaneous Flow, with a resolution of five digits.

There are models of CEB09 heads that have:

• Signal outputs:
• Pulses
• Analog (4-20 mA)

• Different protective boxes for the electronics:
• Aluminum and glass
• ATEX

• Placement regarding the flowmeter:
• Attached to the flow meter
• Separated from the flow meter
